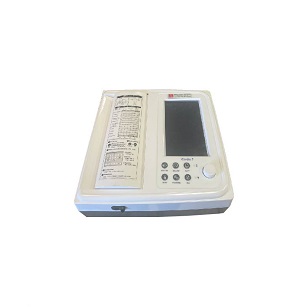

Bionet Cardio 7 ECG
User-friendly interface & diagnosis
Full touch operation with easy of use 6 buttons for streamlining line workflow
Thermal A4 size print out
Text, Guide, Vector printout format for enhanced interpretation
Rechargeable Li-ion battery for 180 min. operation / 200 pages printout
Long term recording of 3,5,10 min. of various analysis algorithms
Network & Data management
Wired/Wireless network connectivity to HIS/EMR with easy DHCP interface
200 Internal memory storage data
BMS PLUS connection for data management from PC through LAN & for
data transfer to HIS (PACS/EMR) with various file format: JPEG, BMP, XML, PDF, MFER, DICOM
Full disclosure up to 5 min. for HRV, Arrhythmia analysis
Product Specifications
ECG Lead: Simultaneous 12 Leads Resting ECG
Recording Channel: 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 6CH+ST map
1CH Long Time(1min, 3min, 5min,10min) and
Special Beat Report (Text, Guide, Vector, ST map)
Gain: 2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV
Printing Speed: 5, 12.5, 25, 50, 100 mm/sec
Sampling Rate: Analysis Sampling Rate – 500
Digital Sampling Rate – 8,000
Filters: AC (50/60 Hz, -20dB or better),
Muscle (25~35Hz, -3dB or better),
Base line drift (0.05Hz, 0.1Hz, 0.2Hz, -3dB or better),
Low pass filter(off, 40Hz, 100Hz, 150Hz)
Display: 800 x 480 pixel resolution, 7” Color TFT wide display
12 channels preview, ID, HR, Gain, Speed, Power status
User Interface: Touch screen, Rotary push-knob
Printer Resolution: Thermal print head, Roll Paper
Report paper width : A4/Letter 215mm(8.5”)
length : A4 297 mm (11.7”)
Letter 279mm(11”)
Resolution: 8dot/mm(0.125mm pitch)
Patient data: ID, name, age, gender, height, weight,
race, smoke, department, room number, study desc.
Basic Measurement: Heart rate(30~300bpm, ±3bpm), PR/RR int., QRS dur., QT/QTc int., P-R-T
SV1/RV5/R+S amp.
ECG Data Storage: Internal Storage for 200 ECGs: Built- in memory.
Electrical: Internal noise: 20uV(p-p) max
Input impedance: ≥ 50MΩ
Input voltage range: ±5mV
CMRR: > 105dB DC offset voltage: ≥ ±400mV Patient leakage current:
< 10uA Frequency response: 0.05 ~ 150 with in –3dB Isolated, defibrillation and ESU protected
Signal Quality Control: Pacemaker pulse detection
Lead fault detection, Signal Saturation Detection
Line Power: Input: 100-240Vac, 1.5-0.75A, 50-60Hz,
