Infinium Cleo Vital Signs Monitor

Description

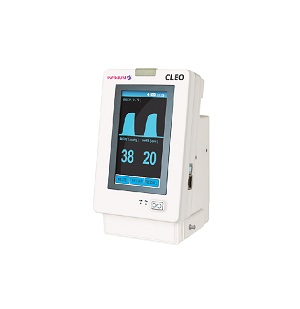

Infinium Cleo Vital Signs Monitor
Introducing the Infinium Cleo Vital Signs Monitor for sale.
The Cleo is a new and intuitive approach to patient vital signs measurement.
The Cleo can be configured to measure any combination of: non-invasive blood pressure,
SpO2, rapid temperature, and capnography (EtCO2). Weighing in at less than 3
LBS the portable Cleo is well suited for any patient care area by offering
a multitude of vital sign combinations. The Cleo can be used as a basic
pulse oximeter or configured to a NIBP/SpO2/Temp spot check monitor.
Cleo can also be configured to be a stand-alone capnograph or combination
capnograph/SpO2/NIBP monitor. The Cleo is well suited for both bed side and mobile spot check use.
The Cleo simplifies clinician use by incorporating a touch screen
with a simple user interface making the Cleo intuitive for any user.
A long life lithium Ion battery is standard and many
mobile mounting solutions’ are available for the Cleo.
Infinium Cleo Vital Signs Monitor Specifications
Dimensions: 4-1/2″ W x 4″ D x 8″ H
Weight: 2.5 lbs
Display: 5.0 inch (Diagonal) color TFT
Resolution: 800 × 3(RGB) × 480
Trace: 2 Waveforms
Waveforms: PLETH, ETCO2
Indicators
Alarm Indicator
Power indicator
Pulse beep and alarm sound
Trend time: From 1 to 72 hours
ETCO2
Mode of Sampling: Sidestream or Mainstream
Principle of Operation: Non-dispersive infrared (NDIR)
single beam optics, dual wavelength, no moving parts.
CO2 measurement Range: 0 to 150 mmHg
CO2 Calculation Method: BTPS (Body Temperature Pressure Saturated)
CO2 Resolution
0.1mmHg (0-69mmHg)
0.25mmHg (70-150mmHg)
CO2 Accuracy
0 ~ 40 mmHg ± 2 mmHg
41 ~ 70 mmHg ± 5% of reading
71 ~ 100 mmHg ± 8% of reading
101 ~ 150 mmHg ± 10% of reading
Above 80 breath per minute ± 12% of reading
Sampling rate: 100Hz
Respiration Rate: 2 ~ 150 bpm
Respiration Rate accuracy: ±1 breath
Response Time: <3 seconds – includes transport time and rise time
Inspired CO2 measurement Range: 3 ~ 50 mmHg
Standards: Meets performance standards of ISO/FDIS 21647:2004 (E), ASTM F1456-01, IEC/CDV 60601-2-55
NIBP
Measuring Technology: Automatic oscillating measurement
Cuff Inflating: < 30s (0 ~ 300 mmHg, standard adult cuff)
Measuring Period: AVE < 40s
Mode: Manual, Auto, STAT
Measuring Interval in AUTO Mode: 2 min ~ 4 hrs
Pulse Rate Range: 30 bpm ~ 250 bpm
Measuring Range
Adult/Pediatric Mode SYS: 40 ~ 250 mmHg DIA: 15 ~ 200 mmHg
Neonatal Mode SYS: 40 ~ 135 mmHg DIA: 15 ~ 100 mmHg
Resolution: 1 mmHg
Pressure Accuracy: Maximum Mean error: ±5 mmHg
Maximum Standard deviation: 8 mmHg
Overpressure Protection
Adult Mode: 280 mmHg
Neonatal Mode: 150 mmHg
Alarm Limit
SYS: 50 ~ 240 mmHg
DIA: 15 ~ 180 mmHg
Standards: Meets performance standards of ANSI/AAMI SP10:2002
SPO2
ASpO2: Anti-motion SpO2
SpO2% Range: 0 ~ 100%
SpO2 Accuracy
±2% (70 ~ 100%,non-motion)
±3% (70 ~ 100%, motion)
Pulse Rate Range: 30-250 bpm
Pulse Rate Accuracy
±2 bpm(non-motion)
±3 bpm (motion)
Alarm Limit
Upper limit 70 ~ 100%
Lower limit 70 ~ 100%
SpO2 Probe
Red light LED wavelength: 660nm±5nm
Infrared light LED wavelength: 940nm±10nm
Standards: Meets performance standards of EN ISO 9919:2005
TEMP
Temperature Measurement Range: 30°C to 43°C (86°F to 109°F)
Typical Measurement Times
Oral (Quick Mode): 3-5 seconds (non-fever temps), 8-10 seconds (fever temps)
Oral (Standard Mode): 6-10 seconds
Axillary Mode: 8-12 seconds
Rectal Mode: 10-14 seconds
Direct Mode (All Sites): 60-120 seconds
Pulse Timer: 60 Second count with
1 “beep” at 15 seconds
2 “beeps” at 30 seconds
1 “beep” at 45 seconds
2 “beeps”at 60 seconds
Patient Accuracy: A Standard Prediction Mode reading and a Direct
Mode reading will differ by less than ±0.2°C (±0.4°F) on 98% of tested patients
Batteries
(4) “AA” Required
Standard IEC package size
Alkaline –1.5 Volt
Approx. 6000 temperature readings
Standards: Meets performance standards of EN 12470-3:2000, ASTM E1112:2006
Infinium CO2
The Infinium capnography module is a field upgradeable plug-in module
that allows for maximum versatility of End-tidal CO2 monitoring.
Our module utilizes a low flow (50ml/min) side-stream method that
allows use for intubated and non-intubated applications. Our luer
lock sample line connection incorporates filter cells to
eliminate the potential of cross contamination
